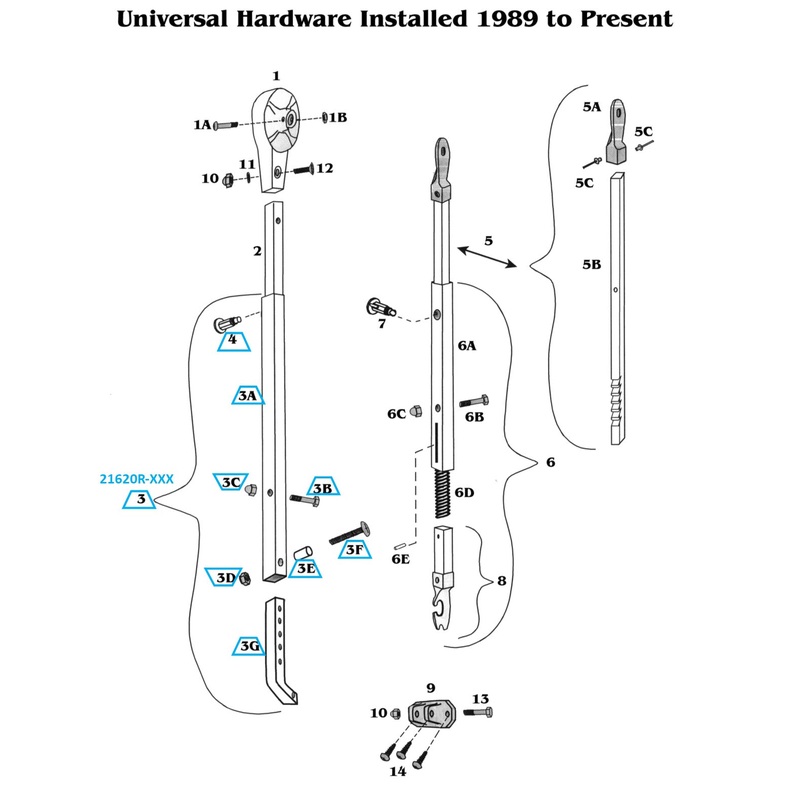

Zip Dee Bright Rear Main Arm Tube Assembly for Universal Hardware includes:

• 216200 Bright Main Arm Tube (3A)
• 310040 1/4-20 x 1-1/4″ Hex Head Bolt (3B)
• 311020 1/4-20 Aluminum Cap Nut (3C)
• 311060 1/4-20 Stainless Steel Nylock Hex Nut (3D)
• 325214 1/4″ x 2/3″ Aluminum Spacer (3E)
• 317203 1/4-20 x 2″ Stud Pin (3F)
• 216700-XXX Bright Hinge Bar (3G)
• 290002 Snap Stud Assembly (4)

Zip Dee Bright Rear Main Arm Tube Assembly for NX Hardware includes:

• 216200 Bright Main Arm Tube (3A)
• 310040 1/4-20 x 1-1/4″ Hex Head Bolt (3B)
• 311020 1/4-20 Aluminum Cap Nut (3C)
• 311060 1/4-20 Stainless Steel Nylock Hex Nut (3D)
• 325215 1/4″ Step Spacer (3E)
• 317203 1/4-20 x 2″ Stud Pin (3F)
• 216700-XXX Bright Hinge Bar (3G)
• 290002 Snap Stud Assembly (4)

*This hardware will not fit Airstream models, use contour hardware instead.

Compatibility: Universal Hardware installed 1989 to present and NX Hardware 2001 to Present.
