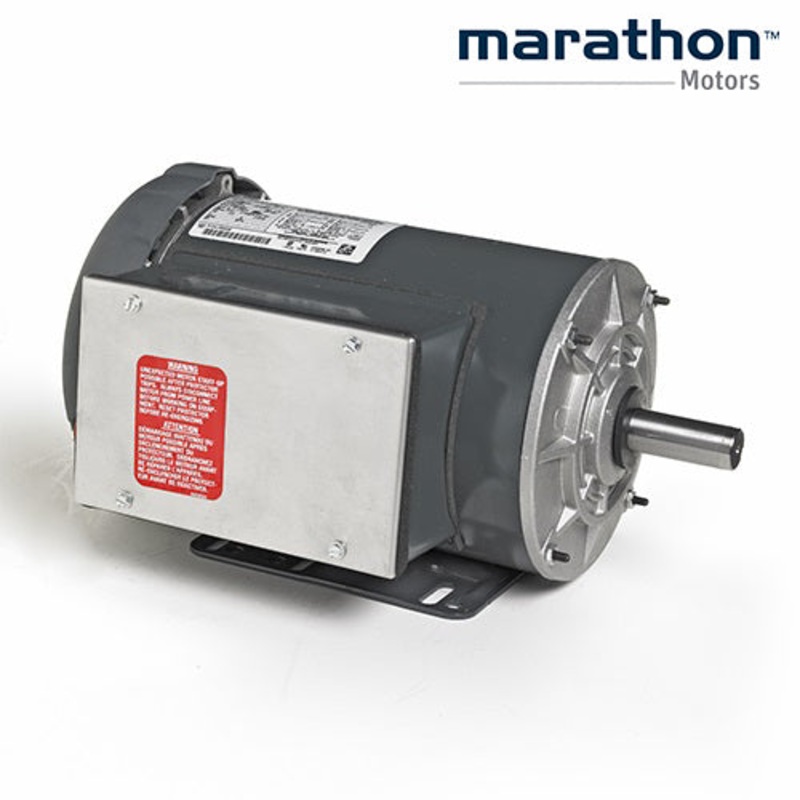

Z118, MARATHON,145TBFR5328, FDL3514TM, 35E2351N451G1
| Model : | 145TBFR5328 | Catalog No : | Z118 |
| Part Description : | 1-1/2,1800,TEFC,145T,1/60/115/208-230 | Category : | Single Phase |
| Stock : | Yes |
| Output HP : | 1.50 Hp | Output KW : | 1.1 kW |
| Frequency : | 60 Hz | Voltage : | 115/208-230 V |
| Current : | 15.2/8.2-7.6 A | Speed : | 1740 rpm |
| Service Factor : | 1.15 | Phase : | 1 |
| Efficiency : | 80 % | Duty : | Continous |
| Insulation Class : | B | Design Code : | L |
| KVA Code : | J | Frame : | 145T |
| Enclosure : | Totally Enclosed Fan Cooled | Overload Protector : | Manual |
| Ambient Temperature : | 40 C | Drive End Bearing Size : | 6205 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized ( Not Protector) |
| CSA : | Y | CE : | Y |
| IP Code : | 43 |
| Electrical Type : | Capacitor Start Capacitor Run | Starting Method : | Across The Line |
| Poles : | 4 | Rotation : | Selective Counterclockwise |
| Mounting : | Rigid Base | Motor Orientation : | Horizontal |
| Drive End Bearing : | Ball | Opp Drive End Bearing : | Ball |
| Frame Material : | Rolled Steel | Shaft Type : | T |
| Overall Length : | 13.87 in | Frame Length : | 8.56 in |
| Shaft Diameter : | 0.875 in | Shaft Extension : | 2.28 in |
| Assembly/Box Mounting : | F1 Only | UPC : | 722856027825 |
| Weight : | 41.00 LB |
