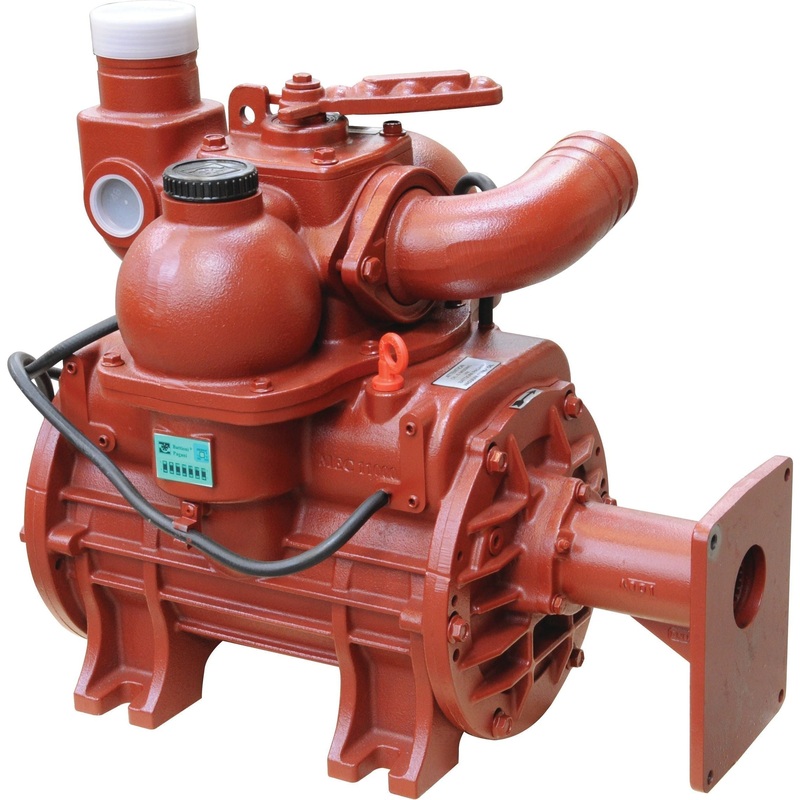

Vacuum Pump – MEC11000H – Hydraulic Driven – 1000 RPM – S.149224

This hydraulic vacuum pump is a powerful and reliable solution for a variety of applications. It features a clockwise rotation, manual lubrication, and a capacity of 11137 LPM. The pump is equipped with a 3L oil tank and can handle a maximum working pressure of 1.5 bar and a vacuum of 0.95 bar. It comes supplied with a hydraulic motor but does not include a 1 1/2” pressure relief valve.

Key Features:

• Hydraulic driven
• 1000 RPM
• Capacity: 11137 LPM
• Maximum Working Pressure: 1.5 bar
• Vacuum Max.: 0.95 Bar
• Oil Tank Capacity: 3L
• Supplied with hydraulic motor

Specifications:

• A (mm): 254
• B (mm): 247
• Brand: Battioni
• C (mm): 147
• D (mm): 648
• E (mm): 80
• F (mm): 22
• G (mm): 575
• H (mm): 164
• Height (mm): 575
• I (mm): 246
• J (mm): 195
• K (mm): 195
• L (mm): 390
• Length (mm): 648
• M (mm): 648
• Model: MEC11000H
• P (mm): 80
• Power Absorption Max. Pressure (kw): 30
• Power Absorption Max. Vacuum (kw): 20
• Rotation: Clockwise
• Tariff Code: 8414102530
• Vacuum Max. (Hg): 0.95 Bar
• Width (mm): 3

Suitable For:

This vacuum pump is suitable for use with Battioni Pagani Pomp equipment. It is compatible with the MEC11000H model.

Manufacturer Information:

This vacuum pump is manufactured by Battioni Pagani Pomp. The manufacturer’s part number is 9363754041.

This vacuum pump is a high-quality product that is designed for long-lasting performance. It is perfect for a variety of applications, including industrial, agricultural, and commercial uses.
