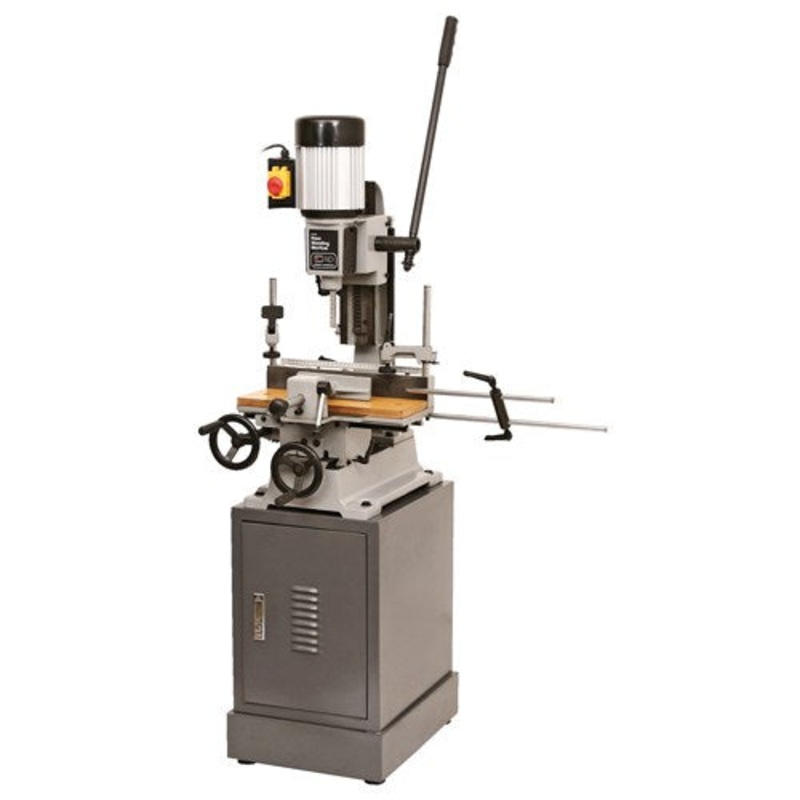

SIP heavy duty cast iron morticer on a cabinet stand with a maximum capacity of 25mm. The head moves smoothly on a solid rack and dovetail column, with gib strips that can be easily adjusted for accuracy and smoothness in use.
Work is held securely in a quick lock clamp and the powerful 1hp induction motor provides ample power for all applications.
Complete with a rise and fall handle which is positionable for maximum leverage. With vertical and sideways movement stops, solid cast iron table with wooden top and cast iron clamp which slides into position quickly and easily.

Specification:

• Supply: 230v (13amp)
• Motor: 750w (1HP)
• Max Motor Speed: 1400rpm
• Max Drill Depth: 70mm
• Max Chisel Stroke: 210mm
• Full Table Size: 400mm x 150mm
• Max Spindle to Fence: 140mm
• Chisel Capacity: 6mm – 26mm (1/4” – 1″)
• Drill Chuck Capacity: 16mm
• Movement: 145 (Long), 170mm (Lat)
• Vertical and Sideways Movement Stops
• Solid Cast Iron Work Table and Clamp
• Adjustable Gib Strips for Accuracy
• Ratchet Rise and Fall Handle
• Weight: 119kg

12 Months Guarantee!
