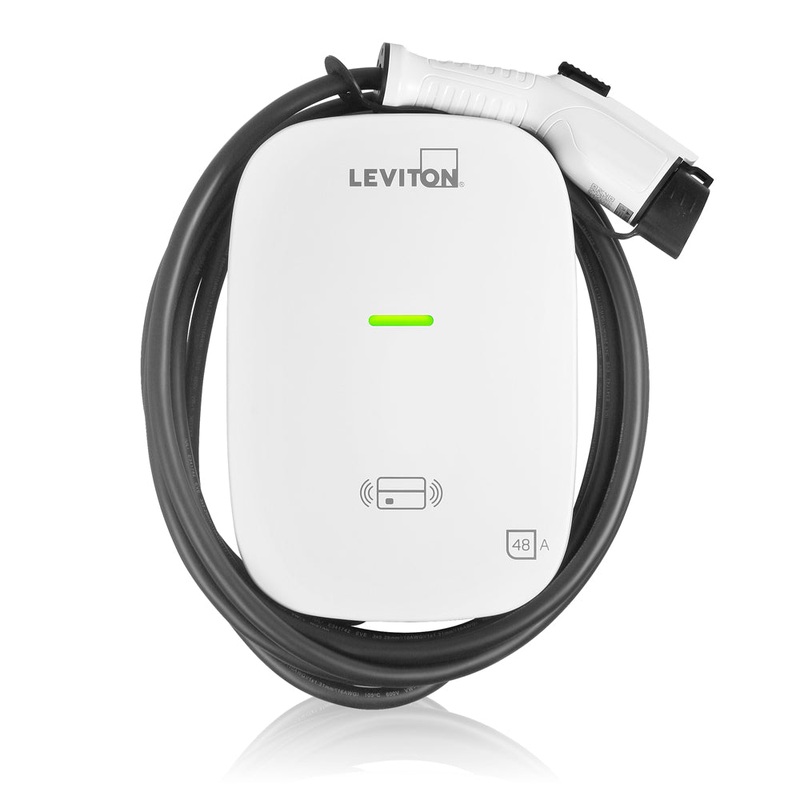

Description

Leviton is proud to be a pioneer in the electric vehicle supply equipment (EVSE) industry, providing charging solutions for over a decade while keeping up with the latest technology.

Features

• Fast and secure charging ofany SAE J1772 compatible electric vehicle
• Optional access control: station comes with RFID disabled – simply tap RFID card to activate
• Cable design prevents cord from freezing and cracking in extreme weather
• For indoor and outdoor use with a thermoplastic, water-resistant enclosure rated NEMA Type 3R
• Easy installation with pre-attached input cable and mounting hardware included
• Energy Star Certified

Technical Information

Electrical Specifications
Amperage: 48 A
Breaker: 60 A
Charge Connector Cord: #7 AWG SAE J1772
Number of Phase / Wire: L1, L2 and Ground, Bottom Feed
Operating Temperature: -30C to 50C
Output Power: 11.6kW
Short Circuit Current Rating: 20 mA CCID per UL 2231
Voltage: 208/240 VAC

Environmental Specifications
Altitude: Up to 6,500 ft. (2,000 m)
Charging Cable Operating Temperature: -30C to +50C
Cooling: Natural Cooling
Operating Humidity: < 95% Relative Humidity, Non-Condensing Material Specifications
Enclosure Material: Plastic (PC+PBT)
Enclosure Rating: NEMA Type 3R
Status Indicator: Power Present, Charging, Fault

Mechanical Specifications
Cable Length: 18 ft. (5.5 m)

Product Features
Application: Home, Commercial
Cover Locking Mechanism: Phillips Head Screws, No Padlock Option
Device Type: Charger

Standards and Certifications
Standards and Certifications: UL2594, UL 2231-1, UL 2231-2, UL 2251, UL 62, UL 991, UL 1998, NFPA 70 Article 625, UL840, CSA Std. C22.2#280, OCPP 1.6 Compliant

Warranty
Warranty: 2-Year Limited
