Description

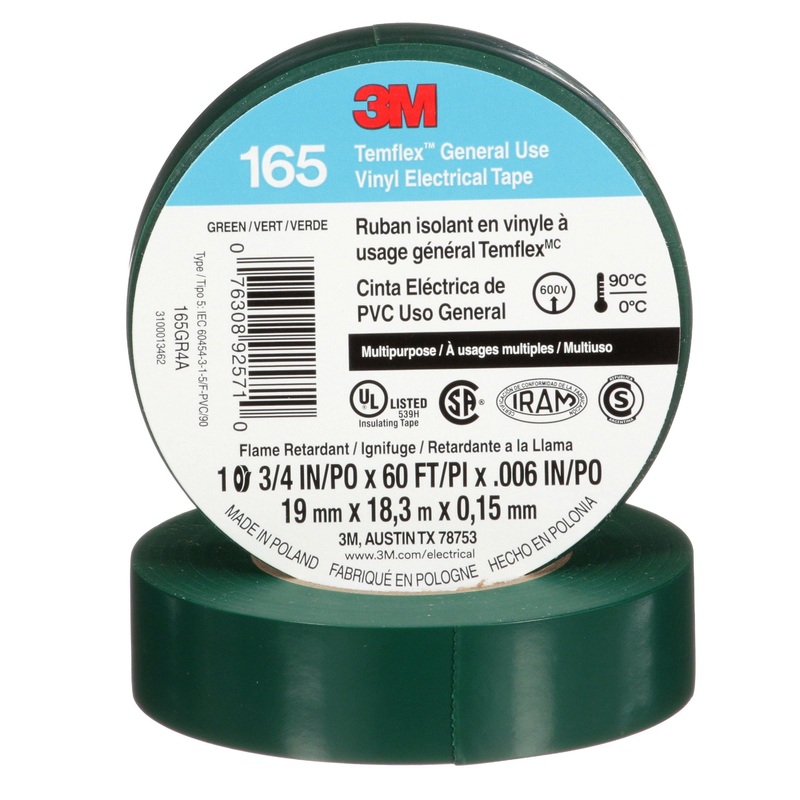

The 3M Temflex Vinyl Electrical Tape is a good quality, multi-purpose vinyl insulating tape. This tape has great resistance to moisture and varying weather conditions.Itis a polyvinyl chloride (PVC) tape that is flame-retardant and conformable. This tape provides great mechanical protection with minimum bulk. The 3M Temflex Vinyl Electrical Tape is a UL Listed and CSA Certified Insulating Tape.

Features

• Resists abrasion, moisture, alkalis, solvents and acids
• Flame-retardant and helps inhibit the corrosion of electrical conductors
• Made of durable PVC
• Compatible with rubber and synthetic splicing compounds
• Withstands a temperature range of 32 to 194 F (0 to 90 C)
• UL Listed, CSA and VDE Certified

Technical Information

Adhesive Type:Rubber
Applications:Insulation
Backing (Carrier) Material:PVC
Elongation at Break:200.0 %
ETIM Class 8.0:EC000128
Maximum Operating Temperature (Celsius): 90.0 C
Maximum Operating Temperature (Fahrenheit):194.0 F
Minimum Operating Temperature (Celsius):0.0 C
Minimum Operating Temperature (Fahrenheit):32.0 F
Overall Length (Imperial):60.0 ft
Overall Length (Metric):18.0 m
Overall Width (Imperial):0.75 in
Overall Width (Metric):19.0 mm
Product Colour:Green
Tape Grade:General Use
Total Tape Thickness without Liner (Imperial):0.006 in
Total Tape Thickness without Liner (metric):0.15 mm
Voltage Rating:600 V
