Description

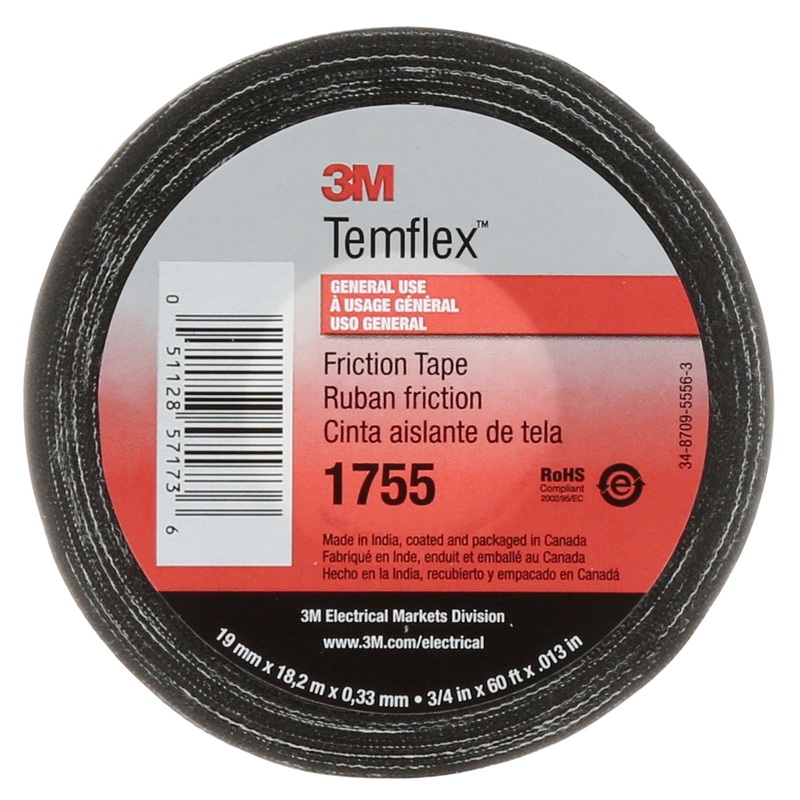

The 3M Temflex Cotton Friction Tape is a black friction tape designed to provide mechanical protection against abrasion and cut-through for cables, wire splices, and connections insulated with rubber electrical tape. The 13-mil (0.33 mm) thick tape is composed of a high-quality cotton fabric, coated on both sides with an electrical-grade, solvent-free, rubber adhesive.

Features

• Withstands a temperature range of 15F to 176F (10C to 80C)
• Colour: Black
• RoHS 2011/65/EU

Technical Information

Adhesive Type:Rubber
Back Side Adhesive Thickness (Metric):0.33 mm
Backing (Carrier) Material:Cotton
Backing (Carrier) Thickness (Imperial):13.0 mil
Backing (Carrier) Thickness (Metric):0.33 mil
ETIM Class 8.0:EC000128
Indoor/Outdoor:Indoor/Outdoor
Maximum Operating Temperature (Celsius):80.0 C
Maximum Operating Temperature (Fahrenheit):176.0 F
Overall Length (Imperial):60.0 ft
Overall Length (Metric):18.3 m
Overall Width (Imperial):0.75 in
Overall Width (Metric):19.0 mm
Product Colour:Black
Specifications Met:RoHS 2011/65/EU
Tensile Strength (Imperial):48.0 lb/in
Tensile Strength (metric):840.5 N/100mm
Total Tape Thickness without Liner (Imperial):13.0 mil
Total Tape Thickness without Liner (metric):0.33 mm
