IN STOCK

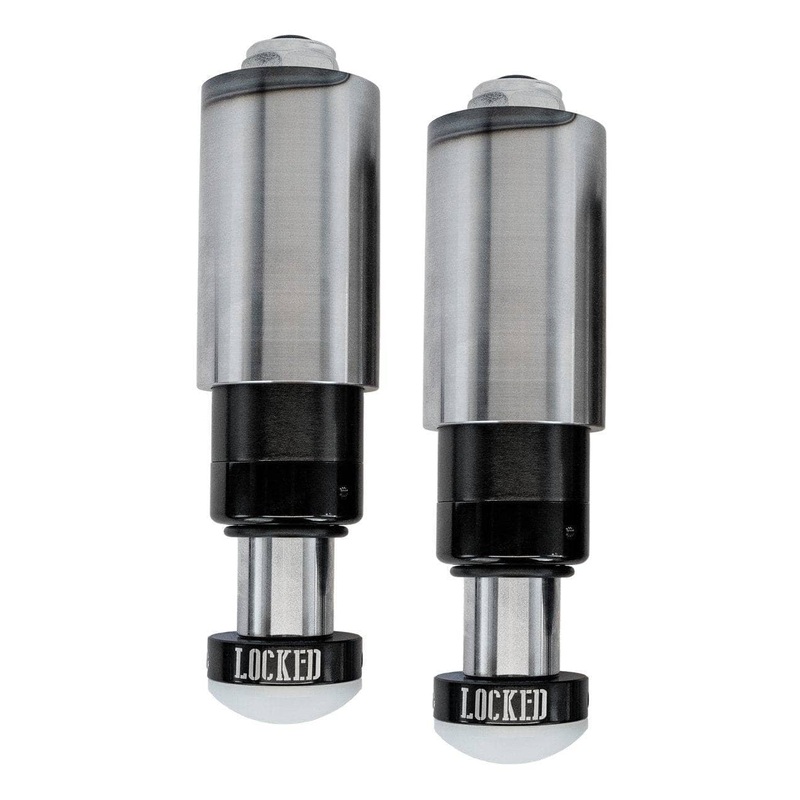

PAIR OF 2.0″ BUMP STOPS 2″ & 4″ TRAVEL OPTIONS

• Hydraulic bump stops
• Fully rebuildable
• Adjustable oil volume & nitrogen pressure
• Includes mounting sleeves

TECHNICAL SPECS:

• 2.0″ Diameter Body
• 2″ Stroke: Extended 11.75″ | Collapsed 9.75″
• 4″ Stroke: Extended 15.5″ | Collapsed 11.5″
• 1.26″ diameter shafts Hard-chromed and mirror-polished for rust prevention and extended seal life
• Schrader cap mounts directly to the body, not the valve, for a stronger, cleaner seal
• O-ring travel indicator shows real-time shaft travel
• Delrin contact pad uses a flushmount design for silent performance and no metal-on-metal contact

MOUNTING SLEEVES:

• Heavy-duty, weld-ready sleeves
• Can Outer Diameter: 2.44″
• Pin-style design offers 360 support without pinch points
• Built-in weld shrinkage tolerance ensures proper fit
• Laser-cut indexing holes securely lock bump stop in place

BUILT TO PERFORM:

• Viton Seals
• 4130 Chromed & Polished Shafts
• Black Zinc-Coated Steel Bodies
• 6061 Anodized Aluminum Components

WARRANTY:

1-Year Warranty on non-wearable part

NOTE:

Intended for off-highway use only.
